Solenoid Coils

ABS/ESC ECU solenoid coil
One-BOX booster valve coil
One-BOX diagnostic valve coils
One-BOX analog valve coils

Feature and Benefits

Small size, can provide large electromagnetic force

Using precision stamping and injection molding, the product performance is more reliable

Versatile design for more product use

Laser marking, better product traceability

Application

The ABS controller adjusts the braking pressure of the four wheel ends of the car through the control of the solenoid valve to prevent the wheel lock and ensure the braking performance and safety of the whole vehicle

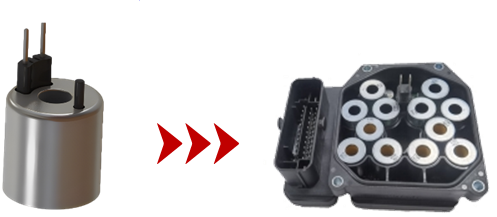

The solenoid coil is the core component that provides electromagnetic force to the solenoid valve

Operate
Basic principle

The ABS controller gives an electrical signal to the solenoid coil, and provides electromagnetic force to the solenoid valve through the solenoid coil to control the solenoid valve switch. Then through the on-off of the solenoid valve, adjust the braking pressure of the four wheel ends of the car to prevent the wheel from locking and ensure the braking performance and vehicle safety of the whole vehicle.

Packaging Options

Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.

Functional Characteristics

ITEMS

PARAMETER

Temperature Range -40℃~125℃

Supply Voltage

DC 5±0.25V
Supply Current <10mA
Resistance 4±0.2Ω
ROHS Meet ROHS requirements
