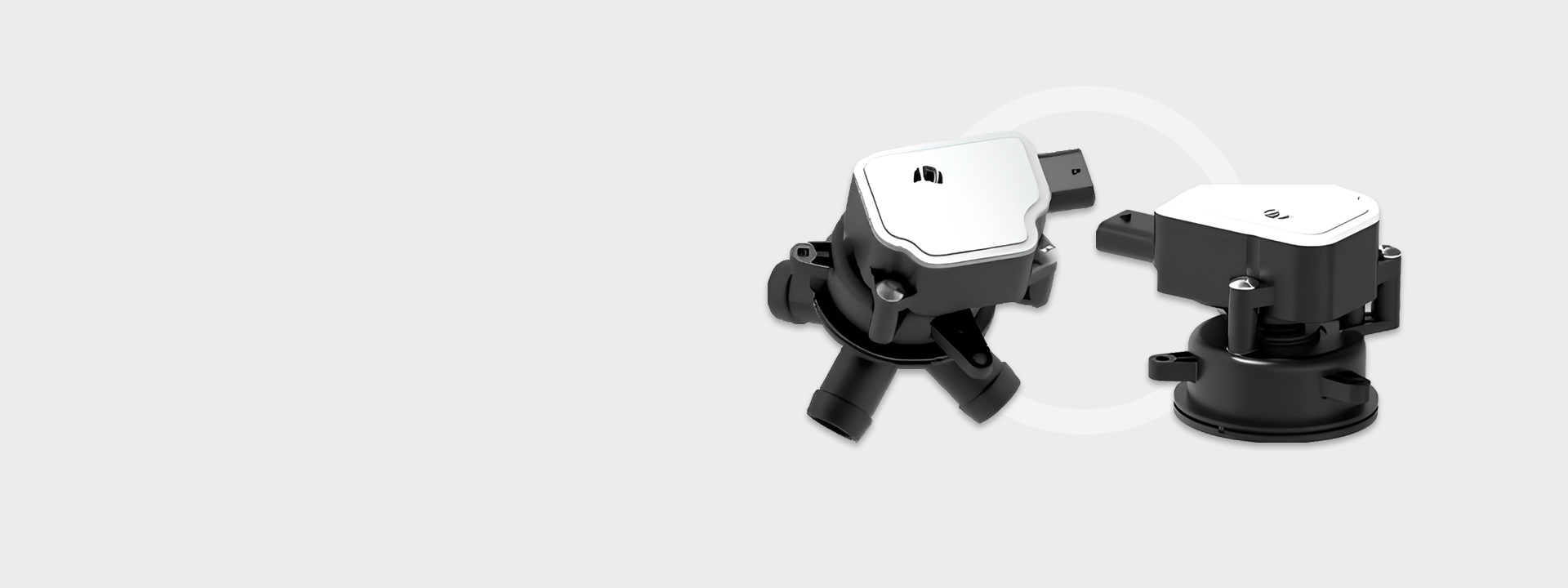

Intelligent Proportional Water Valve

The intelligent proportional water valve mainly includes: motor, controller, circuit board and valve body structure

Feature and benefits

The diaphragm design isolates the magnet parts from the medium, making the electromagnetic force more stable.

Using DC micro motor, the valve core opening is precisely controlled, so as to accurately control the flow of the flow channel.

The product comes with position feedback, short circuit, open circuit, overvoltage, undervoltage and other bad feedback.

Two independent runners can be provided and the runner can be switched.

Application

Switch between different pipelines.

Regulate the flow of different waterways.

Operate
Basic Principle

As shown in the figure on the right, when the initial state, port A is connected to port B, and port D is connected to port C, forming a state two independent runners. When a signal is given to the circuit board, the motor will drive the valve spool to rotate and make A and C are connected, and D and B are connected, forming two new independent runners.



Packaging Options

Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.

Functional Characteristics

ITEMS

PARAMETER

Communication Method LIN2.1

Operating Voltage

DC 9~16V
Operating Current <0.16A
Ambient Temperature -40℃~100℃
Temperature Range >-40℃~100℃
Burst Pressure >800KPa
Max Working Pressure 500KPa
Flow Resistance <1.5kPa@15L/min
Switch Time <3s
Internal Leakage ≤15 ml/min @ 30KPa
Degree Of Protection IP69
Weight 160g
Lifetimes >200k cycles
