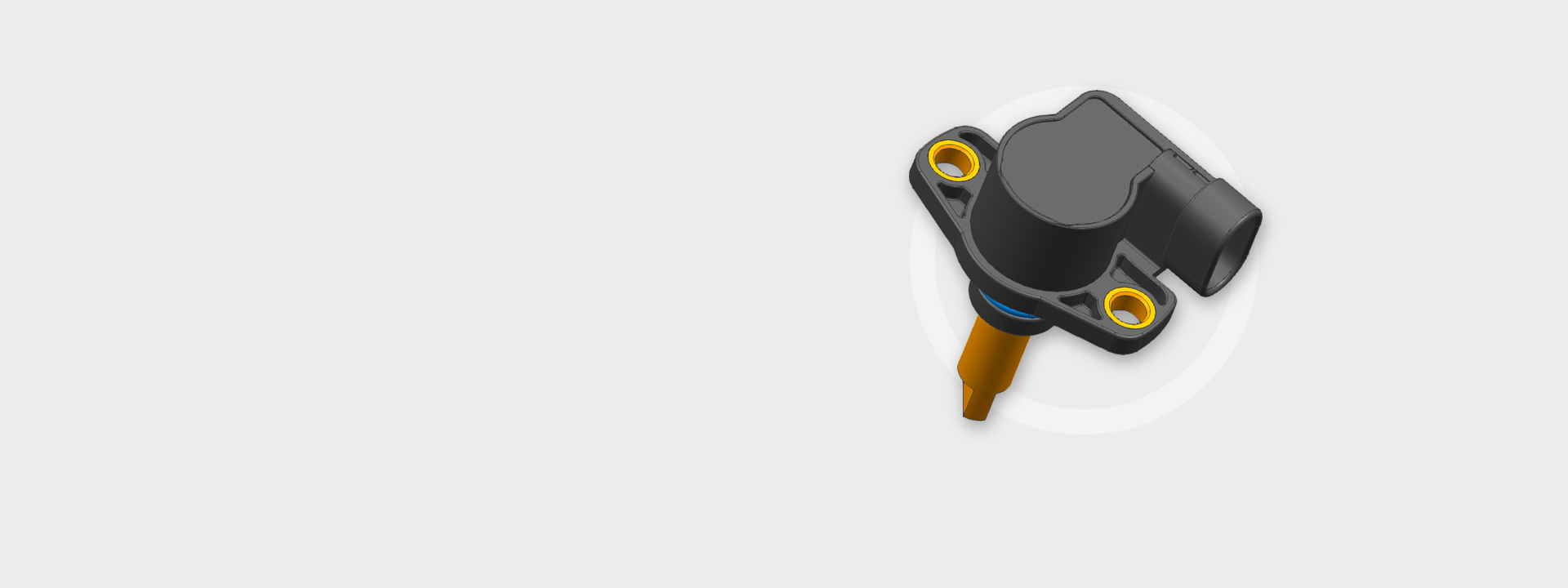

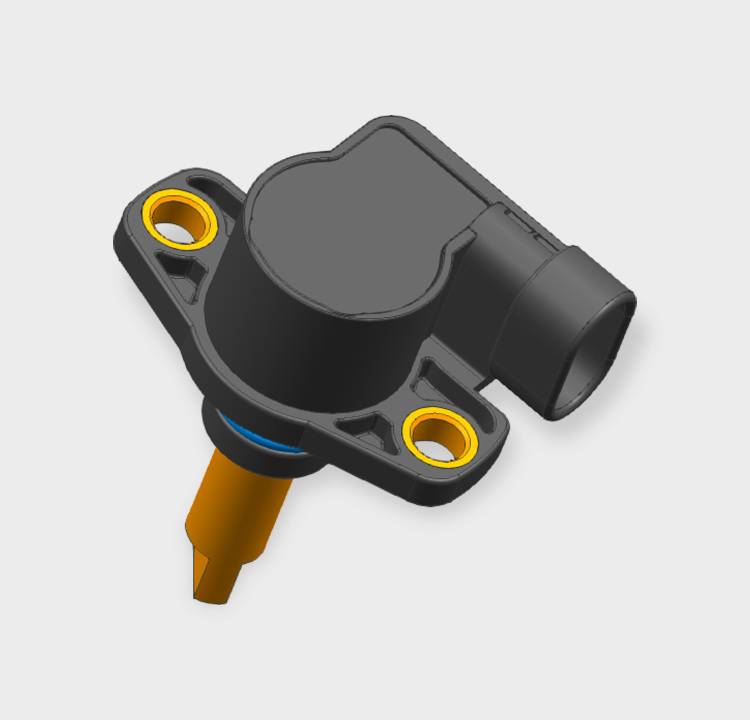

Rotary Sensor

The sensor detects the shaft rotation and outputs the signal which can match the different angle position.

Feature and benefits

Varied Angular sensing ranges available

Absolute rotary position sensor

Analog Output – PWM custom options

Non-contact measuring

Programmable angular range – custom option

Clockwise & Anticlockwise Versions available

Long life

High speed

Unaffected by harsh environments

Small robust package

Application

pedal position

absolute rotary encoder

Axis position

Operate
Basic principle

The sensor is assembled to a shaft with a defined angle position. When the driving shaft is rotating, the magnet inside the sensor is also rotating at same time. The Hall Effect sensor is activating, which would output the voltage as linear.

Connection options

Customized to customer choice of connection system

Packaging Options

Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.

Functional Characteristics
Type



Hall Effect sensor
Programmable
Output
Analog or PWM
Electrical
Supply Voltage
5V±0.25 Vdc
Output Voltage
0.5 to 4.5 Vdc
Linearity
±3%
Electrical Angle
Start point:-5°+/-1º
End point:104°+/-1º
Available for customer defined range.
Environmental/Mechanical
Working Temperature
Operating
Celsius
-40° to +140°
Mechanical Shock
10ms Half Sine
Max.
50g
Sine Vibration
20 – 2500Hz
Max.
40g
Endurance Life

cycles
120,000
