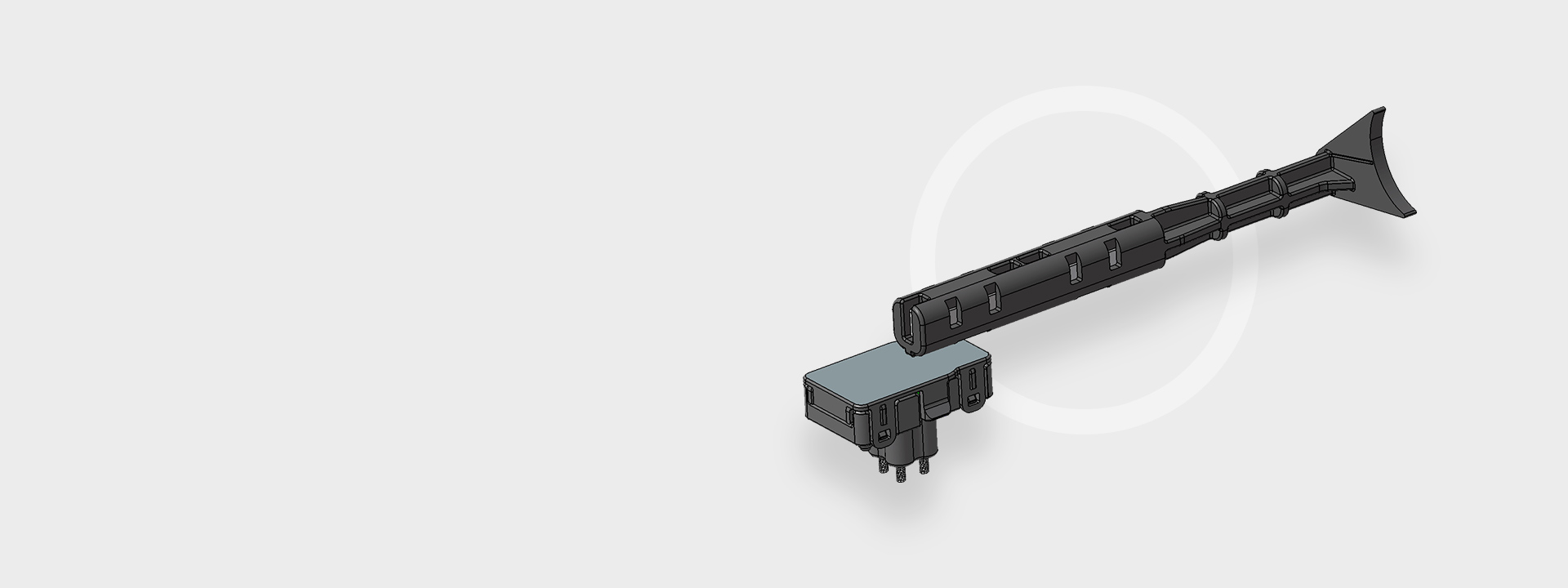

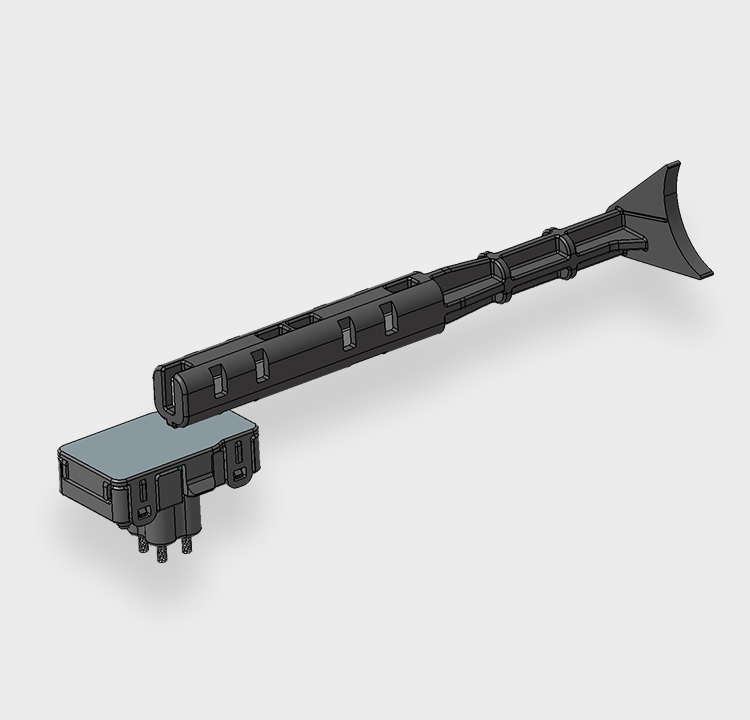

PTS Sensor

The product is designed based on Hall principle, and is installed in the brake pedal system as the pedal travel position sensor to detect the pedal position signal.

Feature and benefits

The working temperature range is - 40-125 ℃

Hermetically sealed, magnetically operated non-contact sensing gives excellent life and reliability

Robust construction makes this sensor well suited to harsh environments

High Accuracy

Application

Used to detect brake pedal position information.

Operate
Basic principle

There is a Hall chip in the sensor, which can output the corresponding high and low level signals according to the changes of the external magnetic field. The ECU terminal judges the current position information according to the combination of different signals.

Connection options

Customized to customer choice of connection system

Packaging Options

Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.

Functional Characteristics
PARAMETER
MIN.
MIN.
MAX.
UNITS
COMMENT
TEMPERATURE RANGE
-40

125

SUPPLY VOLTAGE
4.5
5
5.5
V

SUPPLY CURRENT

8
12
mA

LOW LEVEL SIGNAL
0

0.5
V

HIGH LEVEL SIGNAL
4.5

5
V
