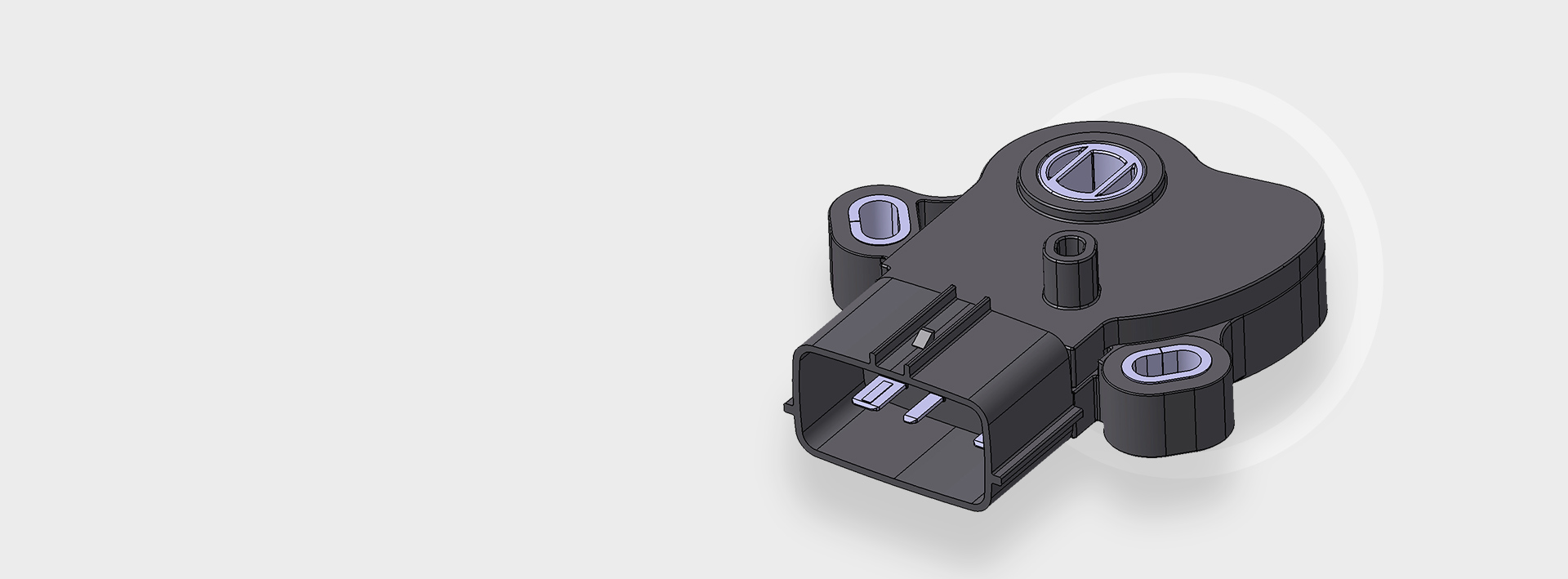

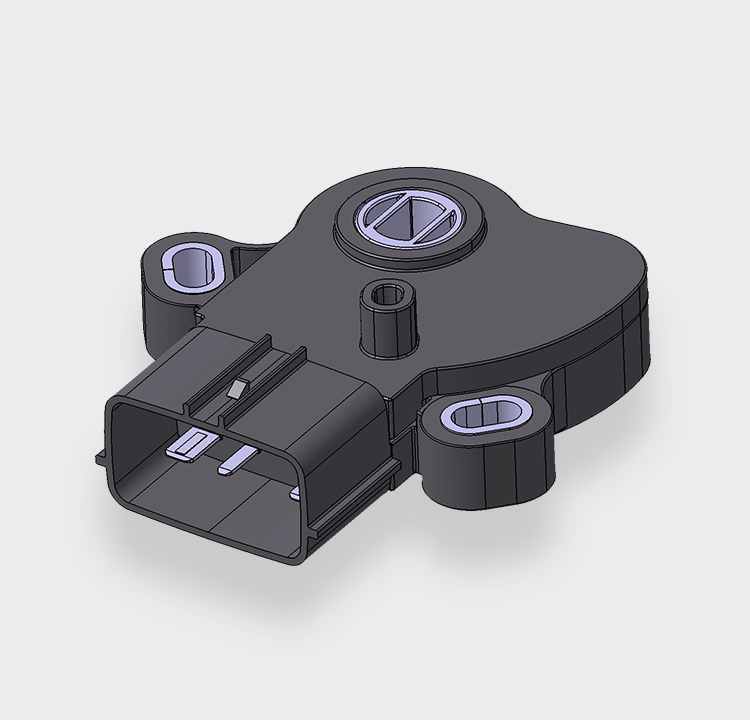

Shifter PRNDS Sensor

This product is used to detect the shift signal. There are multiple contacts on the sensor. When the car is shifting, the contact moves to the corresponding gear, the voltage value changes, and the signal is transmitted to the transmission control system, so as to control the operation of the corresponding actuator PRNDS sensor.

Feature and benefits

The working temperature range is - 40-150 ℃

Long service life and high reliability

Robust construction makes this sensor well suited to harsh environments

High Accuracy

Application

Detect shift information.

Operate
Basic principle

The gear position switch sensor is used to detect the gear position signal. There are multiple contacts on the gear position sensor. When the car shifts gears, the contact moves to the corresponding gear, and the voltage value changes. The gear position sensor detects the shift signal and transmits the signal to the transmission control system to control the operation of the corresponding actuator.

Connection options

Customized to customer choice of connection system.

Packaging Options

Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.

Functional Characteristics

Range of gear angle




Reference angle
angular range
(Based on N reference angle)

angular range
P
-27.8°
(-27°48')
>-32.05°(>-32°03')
-24.53°士1°(-24°32'士1°)

7.52°
R
-10.98°
(-10°59')
-21.83°士1°(-21°50'士1°)
-4.08°±0.75°(4°5'士45')

17.75°
N
-2.53°士0.75°(-2°32'士45')
+2.7°±0.75°(+2”42'士45')

5.23°
D
+10.87°
(+10°52')
+4.25°士0.75°(+4°15'士45')
+15.42士1°(+15°25'士1°)

11.17°
S
+22.02°
(+22°01')
+17.5°士1°(+17°30'士1°)
+26.95°士1°(+26°57'士1°)

9.45°
